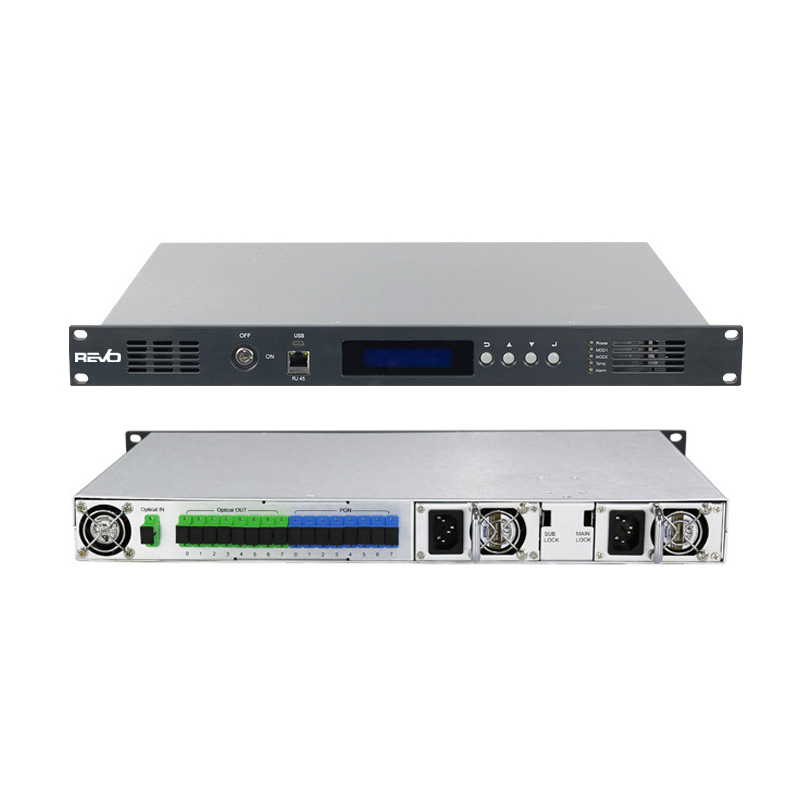

REVO OPTICAL AMPLIFIER – 8 PORT WDM

REVO OPTICAL AMPLIFIER – 8 PORT WDM

The RVWDM-8P series high-power optical amplifier is a high-power multi-port output fiber amplifier with a gain spectrum bandwidth of 1535~1565nm. It is mainly designed for applications of CATV or 1~8 continuous strip channels (ITU wavelengths). RVWDM-8P can achieve single-wavelength cable TV transmission, CWDM single-fiber three-wave, flat gain, it is an important equipment for building CATV large Medium-sized optical fiber transmission network.

Category:

Description

  • Erbium co-doped double-clad fiber technology.
  • Built-in low-noise amplifier eliminates the need for EDFA cascading, greatly reducing system CNR and MER degradation.
  • Output total power range: up to 23dBm~37dBm (5W) optional.
  • Perfect network management interface, in line with SNMP network management protocol.
  • Adopt a mature dual-power hot backup structure dedicated to servers, and cooperates with a microcomputer-controlled intelligent temperature control system to effectively improve system reliability.
  • The back panel can be flexibly removed and replaced according to the number of output ports.

Technical Specification
